MSI Industrial Machines

Browse our complete list of industrial machines. We can also build a custom machine designed to your needs a specifications.


C3A ChamferMate®

The ChamferMate® Model C3A is a compact chamfering / beveling machine that features a rigid one-piece ductile iron vise, top plate and spindle housing, linear ball rails, and a heavy-duty three-bearing spindle.

C5A ChamferMate®

The ChamferMate®Model C5A is a larger version of our C3A with the same features. It has a 5" inch OD capacity and is ideally used for chamfering or beveling pipe and tubing up to 3/8" wall thickness.

C5H ChamferMate®

The ChamferMate®Model C5H is a heavy duty hydraulic powered beveling machine with up to 5 inch OD capacity. It can also machine J bevels and other forms.

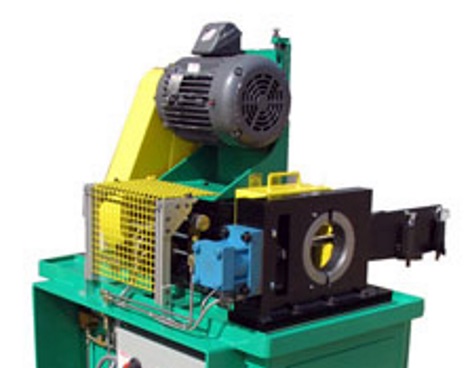

C8H ChamferMate®

The ChamferMate® Model C8H is a heavy duty hydraulic powered beveling machine with up to 8-3/4" OD capacity. With 20 HP, the C8H has the power to machine weld bevels and other forms on the end of heavy wall pipe and tubing within its range.

Double End ChamferMate®

The Model DEC-3 ChamferMate® Double End machine chamfers both ends simultaneously of bolt blanks, stud bolts, rod, bar, tubing or pipe.

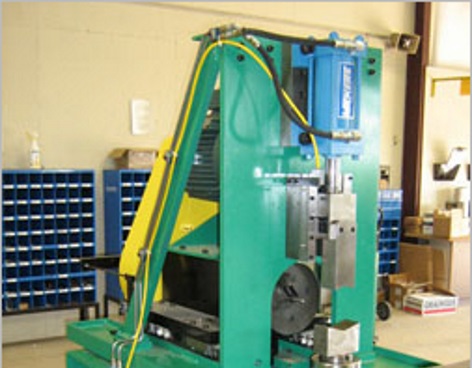

Custom ChamferMate®

If one of our standard machines does not meet your requirements, MSI can design and manufacture a custom machine for you. Custom tooling, vises, strokes, and frames can be supplied.

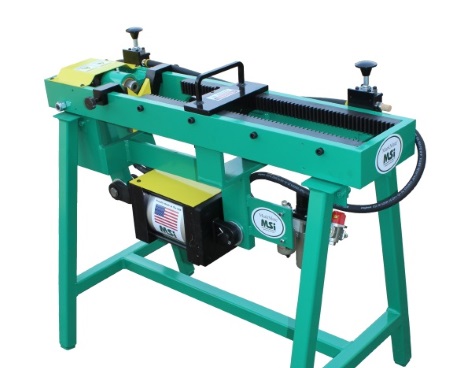

MM-24 MarkMate®

Model MM-24 MarkMate®marking machines are a simple easy to use machine for marking the ends of shafts, bolts, studs, and related items

AMM-24 AutoMarkMate®

The Auto MarkMate® is an auto feeding version of our popular MM-24 machine. With speeds up to 40 parts per minute, production can be greatly increased on marking the ends of studs, rods and shafts.

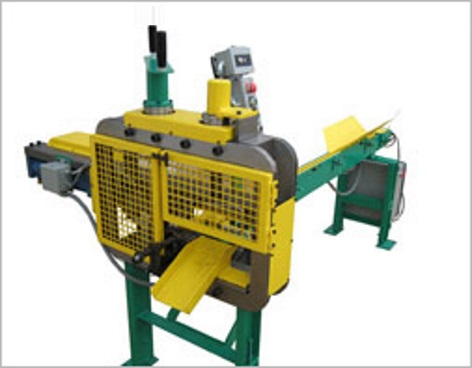

Rotary MarkMate®

Designed to mark the outer diameter of cylindrical items such as pipe nipples the Rotary MarkMate® is capable of 40 parts per minuite capacity.

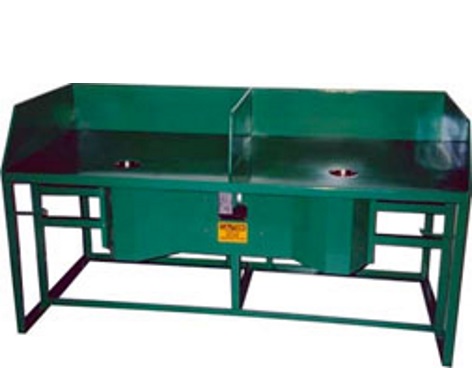

NutMate Assembly Tables

Reliable NutMateTM assembly tables are used extensively in the fastener industry for assembling nuts onto studs, bolts, and similar items prior to shipment.

Horizontal NutMate

The Horizontal NutMate easily assembles nuts and washers on anchor bolts and other long threaded parts.

MSI-100 Bar Shear

The MSI-100 fully automatic 100 ton bar shear will provide you with clean cuts and features such as crop cutting, sorting of drops, and accurate counting of parts.

MSI-70 Bar Shear

The MSI-70 is a Semi-Automatic 70 ton shear for cutting round bars up to 1-1/4" diameter. Dependable hydraulic power and pinch roller feed provides you with and easy to operate package.

FeedMate®

MSI Heavy Duty Parts Feeder for orientating and feeding cylindrical parts into Thread Rollers, Chamfer Machines, Cylindrical Grinders and similar machines.

Bolt Cross Drills

Efficiently cross drills bolts for safety wires. With available tooling, regular and heavy hex heads, socket heads, 12 point bolts, as well as round bar can be cross drilled.

Bolt Shortening Tool

The Bolt Cutoff Jig is a simple and effective way to cutoff or shorten bolts. The jig mounts into any 10 inch or larger band-saw allowing the operator to cut off multiple bolts at a time.
